JB4 for Gen3B 2.0T VAG Group

[George @ BMS]

Use subject to terms and conditions posted at http://www.burgertuning.com/terms.html

THIS PART IS LEGAL FOR USE ONLY IN COMPETITION RACING VEHICLES AS DEFINED UNDER CALIFORNIA LAW, AND IS NOT LEGAL FOR USE IN ANY OTHER MOTOR VEHICLE. California law defines a "racing vehicle" as "a competition vehicle not used on public highways." (Calif. Health & Safety Code 39048) This part may only be used on competition racing vehicles operated exclusively on a closed course in conjunction with a sanctioned racing event. Competition-only motor vehicles may not be driven to a racing event on a public highway and must be transported on a trailer or other carrier. USE OF THIS PART IN ANY OTHER VEHICLE MAY SUBJECT YOU TO FINES AND PENALTIES FOR VIOLATION OF FEDERAL AND/OR STATE LAW, WILL VOID YOUR WARRANTY FROM BURGER MOTORSPORTS, INC, AND CAN VOID YOUR VEHICLE'S WARRANTY. It is your responsibility to comply with all applicable federal and state laws relating to use of this part, and Burger Motorsports, Inc hereby disclaims any liability resulting from the failure to use this part in compliance with all applicable federal and state laws.


We'll use this thread for our upcoming JB4 suitable for 2.0 Gen3B powered cars updates, map guides, firmware, and discussion!

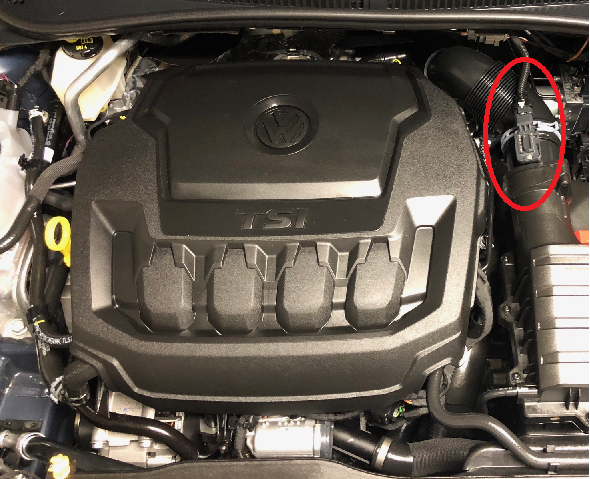

The engine in these cars can be easily identified by the MAF sensor on the intake system circled below:



Compatible cars:

Audi A3 2.0T 184hp
Audi A4 2.0T 190hp
Audi A5 2.0T 190hp
Skoda Kodiaq 2.0T 180hp
Seat Ateca 20T 190hp
VW Aerton 2.0T 190hp
VW Tiguan 2.0T North American
VW T-Roc N1 2.0T 184hp
VW Passat 2.0T North American 174hp
VW Polo GTI 2.0T 200hp

We are currently sending out test units for general feedback. You can email me at [email protected] for further information.


Install Guide here: Follow this guide for now and skip the AFR install as we are not using the feature on the Gen3B.http://www.burgertuning.com/instruct...B4_install.pdf


Optional map changing, datalogging and updates are done using the BMS data cable or JB4 Mobile REV3 bluetooth kit.

JB4 Mobile Smart Phone wireless connection directions Click here
BMS data cable hard wired directions and software Click here


Map guide:

Map0: Stock tuning, disable JB4
Map1: 3psi peak over stock 91AKI
Map2: 4si peak over stock 91 AKI
Map3: 5psi peak over stock (93AKI or 98Ron recommended)
Map4: Stock tuning, JB4 logging fully active

Firmware updates:

Firmware is what the software that runs the JB4 is called. We keep improving on our units by adding more features etc over time.

To upload new firmware to the unit with the Windows interface connect to the JB4 with engine off but key on. Go to File then Upload firmware and select the firmware from the location you have downloaded it. If the upload fails then try again unit it takes. Its important the data cable is secured to the JB4 circuit board.
Instructions on how to load it on the app can be found here, be sure to come to this thread when selecting the firmware: http://jb4connectkit.com/store/index...ormation_id=10

Firmware update to 26/2//5

1. Battery drain issue with OBD wire fixed
2. Small mapping changes

How to update firmware:

For firmware updates we suggest you turn off WiFi, change upload timeout to 25, and set your phone next to JB4 box under the hood.


Download firmware using the new JB4 Mobile firmware database or externally by clicking this link.

[George @ BMS]

In our own stable we have both a US Tiguan as well as a Polo GTI 200hp
Had the Polo GTI on the dyno for some preliminary map testing. Gains seemed to be good on map 3 but the car has heat soak issues with the smaller front mount intercooler.

After some cooling car made decent power in map 3. The turbo is a IS20 so there is more range for power and much more torque using map 6 when coupled with cooling mods.

[Wolfs9]

Really looking forward to this !
A4 B9 2.0T Fwd gen3b 190hp.
Any update on gains ?
Should there be any heat soak issue with this model ?
It has a lager intercooler than the polo no ?
Grtz from Belgium !

[George @ BMS]

Really looking forward to this !
A4 B9 2.0T Fwd gen3b 190hp.
Any update on gains ?
Should there be any heat soak issue with this model ?
It has a lager intercooler than the polo no ?
Grtz from Belgium !

Intercooler is large by the looks of things. A user local to me is fitting one next week some time so will get lots of data on the A4.

[Wolfs9]

Looking forward to good news !

[George @ BMS]

Looking forward to good news !

We most likely going to put these on our retail site next week.

[Wolfs9]

No updates on this ?

[George @ BMS]

No updates on this ?

We got quite a few testers out and so far so good. At this stage we evaluating the MAF signal and seeing if we can make any improvements by connecting to that.

[Tedmond]

George, are you still looking for testers ?

[George @ BMS]

George, are you still looking for testers ?

Yes if you are US based, drop me a email to [email protected] .

[Wolfs9]

No news here ?

[George @ BMS]

No news here ?

We got around 30 testers now and still evaluating . So far so good.

[HoTnFunkYGTI]

Quite an accomplishment getting a Polo GTI in the US how did you go about that??
Ordered just before April and only just been built Nov. :-S

Do you Think you Will have produktion units Ready by Christmas? Incl. EU...

Would be tempted to get my selv a Christmas pressent :-D

Any plans to offer an intercooler upgrade for the polo or other of the cars that run hot???
Or are there already compatible products on the market??

[George @ BMS]

Quite an accomplishment getting a Polo GTI in the US how did you go about that??
Ordered just before April and only just been built Nov. :-S

Do you Think you Will have produktion units Ready by Christmas? Incl. EU...

Would be tempted to get my selv a Christmas pressent :-D

Any plans to offer an intercooler upgrade for the polo or other of the cars that run hot???
Or are there already compatible products on the market??

Part of our VAG group development gets done in South Africa where I am based. We managed to grab a ex press car albiet at a slight premium.
The unit will be ready before then and we expect release this month.
We will look at coolers for US models like the Passat but for the Polo the market is to small for us. Wagner is developing a cooler and normally Firge follows suite.

[Wolfs9]

Any idea when the unit shall be ready ?
Do you know if there Will be a air intake for this engine on A4 ?

[Wolfs9]

?

[George @ BMS]

?

We should have them up by Tuesday/Wednesday.

[LukeHawk]

Hey George,

I'm quite keen on the JB4 for my Audi.
Ive got a 2016 190HP A4 B9 2.0TFSI. So I guess this option would be suitable for me? I used a JB4 on my previous BMW F30, and was very impressed,

I'm also based in South Africa. Do you have a rough idea of local pricing? Also happy to be a tester.

[George @ BMS]

Hey George,

I'm quite keen on the JB4 for my Audi.
Ive got a 2016 190HP A4 B9 2.0TFSI. So I guess this option would be suitable for me? I used a JB4 on my previous BMW F30, and was very impressed,

I'm also based in South Africa. Do you have a rough idea of local pricing? Also happy to be a tester.

Yes, its compatible to your A4.

We adding these to our site this week. For a local price contact a dealer local to you. The pricing is the same as the usual VW JB4 so it should cost the same.

[blitz869]

Hey George,

Good to see the JB4 finally drop for group 8. The info provided is pretty limited 35hp & 45 Torque for map 1. What type of power will it make on map 3 with 93 octane? Specifically for the North American Tiguan making 184 hp / 220 torque.

[George @ BMS]

Hey George,

Good to see the JB4 finally drop for group 8. The info provided is pretty limited 35hp & 45 Torque for map 1. What type of power will it make on map 3 with 93 octane? Specifically for the North American Tiguan making 184 hp / 220 torque.

Map 2 should be 45hp over.

In map 3 we getting mixed results as some cars after a few pulls start hesitating. We have tested virtually everything to try solve it and I am now waiting for a few after market spark plugs to see if its caused by blow out. The turbo has around 60hp in it easily but we cannot tap into that yet.

[toda]

Can any beta tester share some review with the 18 Tiguan?
Looking to get a 18 Tiguan but the only thing holding me back is the power.

[Tedmond]

power is lacking, but its not terrible if you drive it in sport. I have the JB4 tuner on the way, so once it's installed in conjunction with the pedal tuner I'll report back.

[toda]

power is lacking, but its not terrible if you drive it in sport. I have the JB4 tuner on the way, so once it's installed in conjunction with the pedal tuner I'll report back.

Looking forward to your feedback.

[RLinePassat18]

Hi George any luck getting your hands on different plugs yet? Thanks!

[George @ BMS]

Hi George any luck getting your hands on different plugs yet? Thanks!

Still working on it.

[RLinePassat18]

Ok great

[John MK7.5]

I just installed my JB4 and on my first drive the EPC light came on. I did some research and found that plug C could be the issue. I plugged in OEM plug and it runs fine now. Anyone else have this issue and does the jb4 still unlock all the potential power if one plug isnt connected.

Codes from JB4 app
426A
5A38

MK7.5 GTI PP DSG

[George @ BMS]

I just installed my JB4 and on my first drive the EPC light came on. I did some research and found that plug C could be the issue. I plugged in OEM plug and it runs fine now. Anyone else have this issue and does the jb4 still unlock all the potential power if one plug isnt connected.

Codes from JB4 app
426A
5A38

MK7.5 GTI PP DSG

Drop me a email at [email protected]
Probably the wrong VW unit for your car.

[latar]

After some cooling car made decent power in map 3. The turbo is a IS20 so there is more range for power and much more torque using map 6 when coupled with cooling mods.

Hi George, what cooling mods do you mean in here? Cooling for a dyno or a bigger IC?
Are you aware of any IC upgrades ready for purchase for the new Polo GTI 2.0TSI to become map 6 compliant?

Cheers from Poland

[George @ BMS]

Hi George, what cooling mods do you mean in here? Cooling for a dyno or a bigger IC?
Are you aware of any IC upgrades ready for purchase for the new Polo GTI 2.0TSI to become map 6 compliant?

Cheers from Poland

In general, the IAT can climb 30C in a single pull through the gears. There isn't a cooler available yet. I know Wagner is working on one so it should be the first to become available.

[HitmanHearns]

In general, the IAT can climb 30C in a single pull through the gears. There isn't a cooler available yet. I know Wagner is working on one so it should be the first to become available.

Would we run into cooling issues on the 2018 A4 190hp models ? Or the cooling functionality is different between the A4 and what you are testing?

[George @ BMS]

Would we run into cooling issues on the 2018 A4 190hp models ? Or the cooling functionality is different between the A4 and what you are testing?

Less so with the 190hp A4 as the intercooler has a slightly different lay out and seems to be larger. Most users are in winter now so the data is not enough to be conclusive.
In the next few weeks we are fitting on A4 that are in hot climates and will have a better idea.

[creepingKrawler]

So this seems to be a little bit diff than the n54 jb4 (ran with BEF) I have & have a few questions.

Read the install pdf, what is the obd2 cable for? What about spark plugs from a gti or r? You think the turbo has around 60hp in it, is that on pump gas? Will I be able to take advantage of alcohol injection? Im guessing accessing command mode through the steering controls isnt possible? Does the app or laptop have access to all the same functions?

[George @ BMS]

So this seems to be a little bit diff than the n54 jb4 (ran with BEF) I have & have a few questions.

Read the install pdf, what is the obd2 cable for? What about spark plugs from a gti or r? You think the turbo has around 60hp in it, is that on pump gas? Will I be able to take advantage of alcohol injection? Im guessing accessing command mode through the steering controls isnt possible? Does the app or laptop have access to all the same functions?

Only way to access is via the app or laptop. In terms of adjustment you can do boost and fuel.
OBD wire feeds engine data to the JB4 for mapping purposes.
The steering wheel module is not directly linked as the vehicle network is separated with various modules so we cannot do steering wheel controls unfortunately.

[jnhalstead]

Only way to access is via the app or laptop. In terms of adjustment you can do boost and fuel.
OBD wire feeds engine data to the JB4 for mapping purposes.
The steering wheel module is not directly linked as the vehicle network is separated with various modules so we cannot do steering wheel controls unfortunately.

George, any updates on the 3B? Any luck with the intake plug?

[George @ BMS]

George, any updates on the 3B? Any luck with the intake plug?

Do you mean for the MAF sensor in the intake?

[jnhalstead]

Do you mean for the MAF sensor in the intake?

indeed

[George @ BMS]

indeed

There was no benefit. At a certain load point the ECU starts ignoring it (we testing with it unplugged as well with no performance difference).

[Lifesgood]

We got around 30 testers now and still evaluating . So far so good.

Any feedback from testers?

[Litspeed]

Any feedback from testers?

I would like that as well......all feedback!

Tom

[rsivan]

feedback

I have JB4 fitted on gen3b T-Roc 190cv TSI and work great!,zero problems.

[Litspeed]

What about performance?

[rsivan]

I did not test on dyno,however map2 and map3 are ok both no holes or error , we running here 95RON fuel as std,
I have now map6 at 4.5psi max ,comparing with my previuos gen3 tuned by flash I think is over 50ps+ the more gain is from 4000rpm to 6000rpm ,before was very weak in this range.

[Lifesgood]

In our own stable we have both a US Tiguan as well as a Polo GTI 200hp
Had the Polo GTI on the dyno for some preliminary map testing. Gains seemed to be good on map 3 but the car has heat soak issues with the smaller front mount intercooler.

After some cooling car made decent power in map 3. The turbo is a IS20 so there is more range for power and much more torque using map 6 when coupled with cooling mods.

George, I have the JB4 now fitted to my Polo. Should map 3 be OK as it is - 1 outside

[George @ BMS]

George, I have the JB4 now fitted to my Polo. Should map 3 be OK as it is - 1 outside

Yes, it should be good.

[L32]

which is the difference between the tiguan and polo gti?
there is some engine difference? or is just the ecu map?
i mean, you can get some decebt power on the gti but not on tiguan.

[George @ BMS]

which is the difference between the tiguan and polo gti?
there is some engine difference? or is just the ecu map?
i mean, you can get some decebt power on the gti but not on tiguan.

At this point it is unknown if there are any engine variances which I doubt. The variance is most likely mapping. On the Tiguan the base ECU tune does not allow for similar boost levels for consistent power at this level.

[PaulyD88]

Hi everyone, just got my g8 jb4 installed on my 18 Passat. Anyone on here have the Passat also? Are you using the connect kit? Is it worth it at this stage of the jb4 just being released for our engines? If so what map is safe to use on us 93oct pump gas with no other mods. Thanks!

[George @ BMS]

Hi everyone, just got my g8 jb4 installed on my 18 Passat. Anyone on here have the Passat also? Are you using the connect kit? Is it worth it at this stage of the jb4 just being released for our engines? If so what map is safe to use on us 93oct pump gas with no other mods. Thanks!

In cooler weather on the Passat which has a different turbo to the rest of the Gen3B cars user are using map 2 or 3 or a custom map we set up for them.
